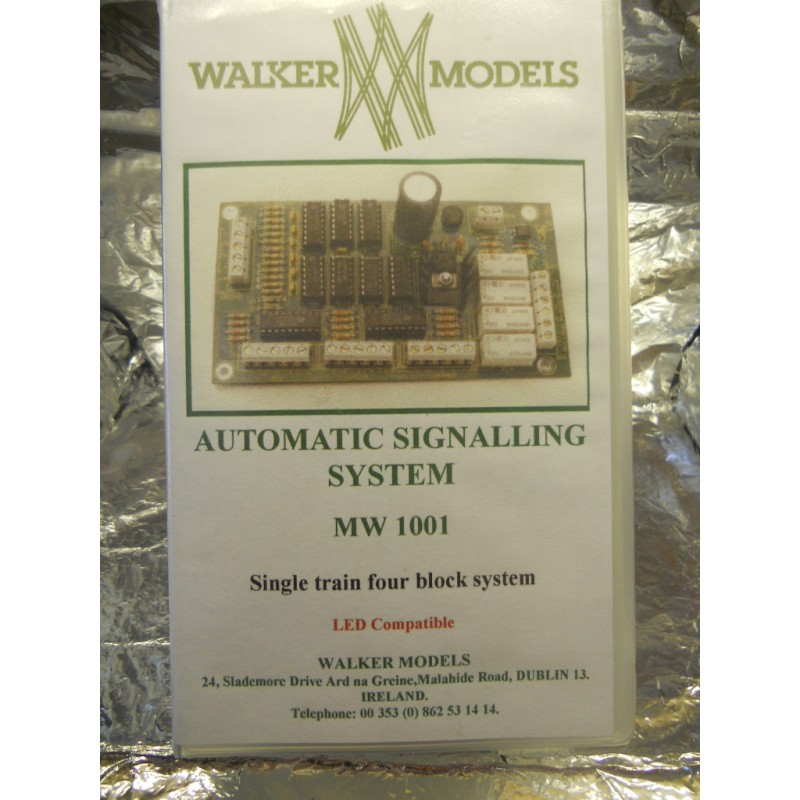

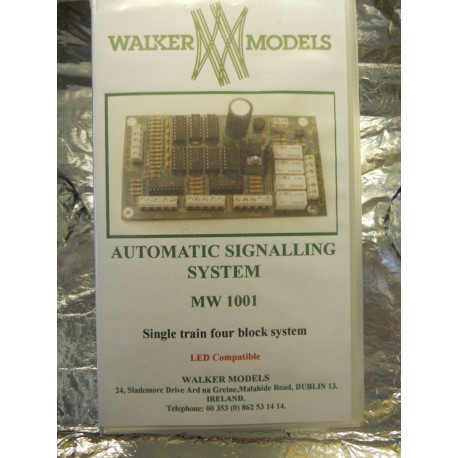

** Walker MW1001 Automatic Signalling System.

Walker Models MW1001 is a Four bock signalling system capable of operating two or three aspect lamp or LED signals.  The system requires a 12 volt DC supply for rail and a 16 volt AC supply for the accessories - Check your controller before making any connections.

To operate correctly, the track must be devided into four sections ( Blocks ) , isolated from the others. If you don"t want to use all four signal connections, you don"t have to.

You may use 1, 2, 3, or 4 signals but it is necessary to incorporate the four rail blocks in conjunction  with the four reed switches.

The reed switches are activated by a small magnet placed under the first coach or goods wagon but never under a locomotive or powered rail car.

The reed switches in turn activate the system.
